Overview

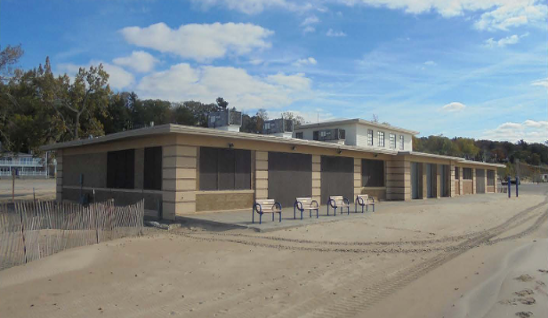

The renovation of the Grand Haven State Park Beach House will provide an interactive facility that promotes healthy relationships between the site and community. A flexible environment will be established through a functional and universally accessible design.  The design will accommodate the various needs of local and visiting users, by enhancing the experience to create meaningful memories. Safety and sustainability features will be employed in the design to reflect the natural and cultural values of the surrounding area. A focus on clarity and inclusiveness creates a fluid design for the reflection of identity for users.

Design Goals: dynamic, inclusive, conscientious, diverse, interactive and evidence based

This project was a collaboration with Breezy McEntee and Yajie Zhu.

Applications used: Photoshop, AutoCad, Sketchup, SU Podium

Process

USer Mapping

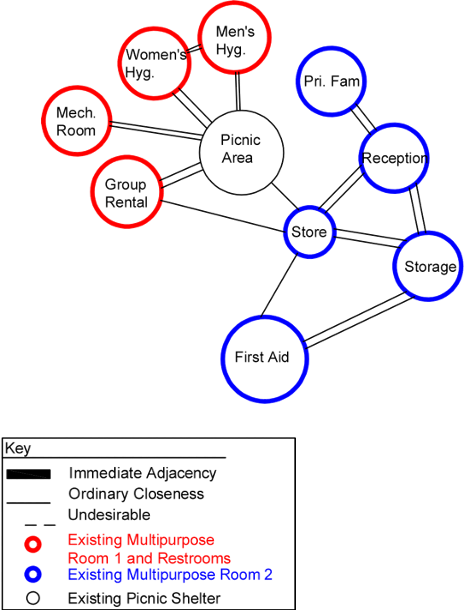

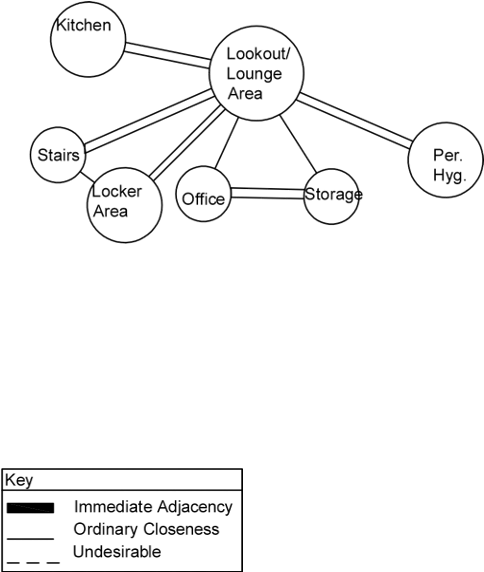

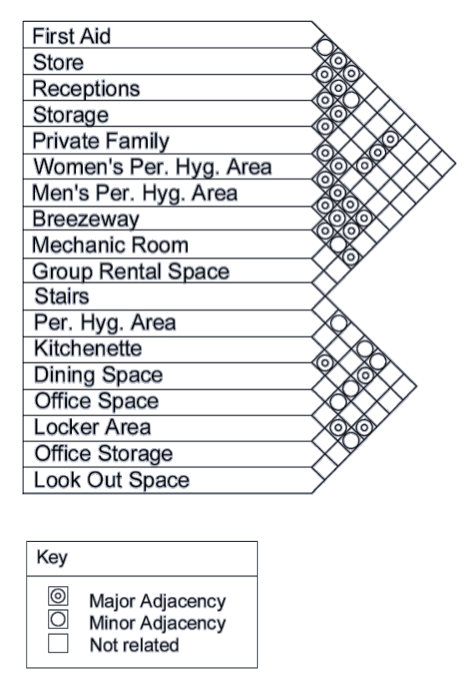

Block diagrams

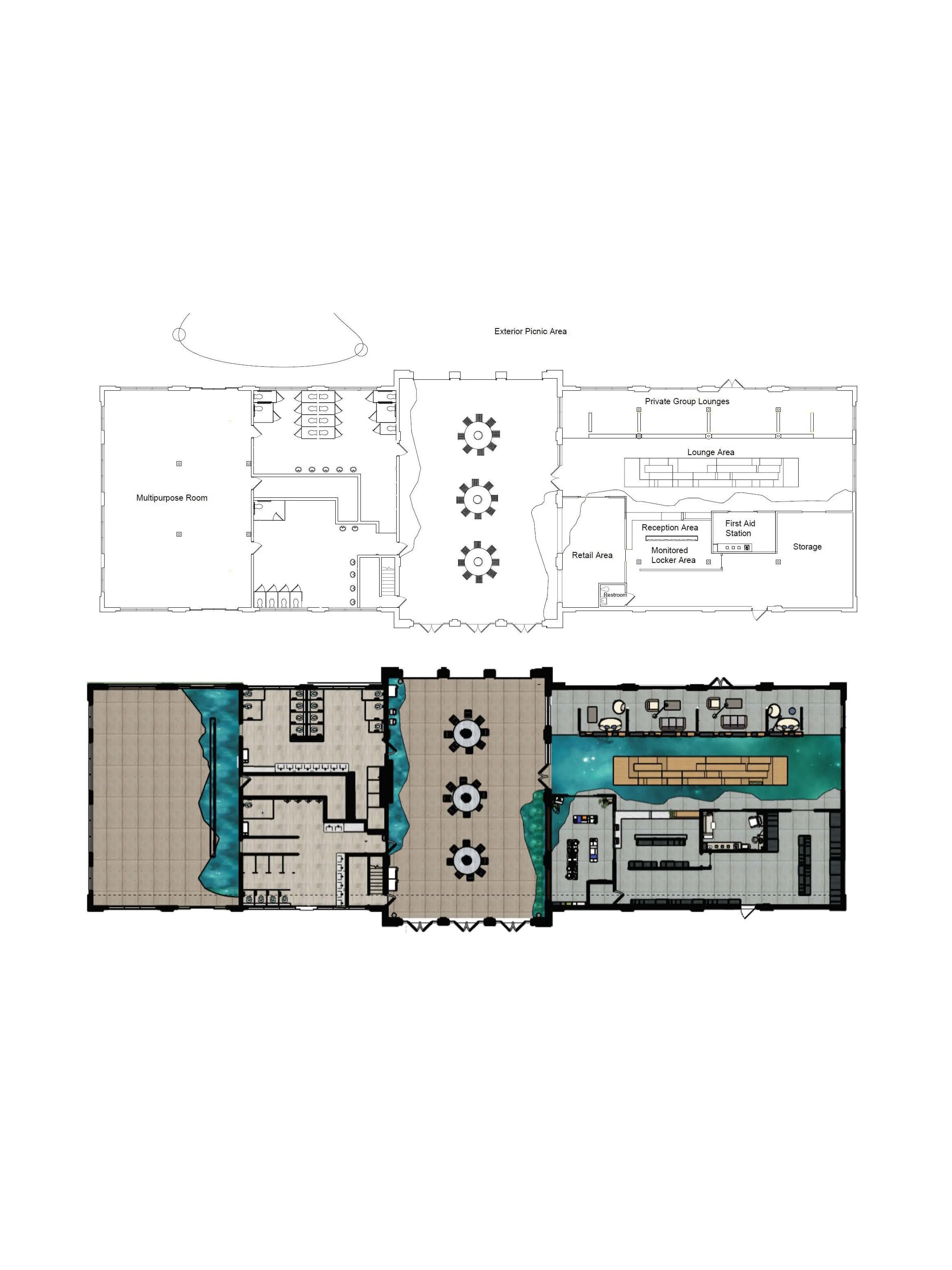

First Story Floorplan

First Floor Code Considerations

Nurse’s station codes 830 and 835 will be met to include proper equipment and sterile patient room.

Restroom Codes : 603, 604

Water Fountain: 602

First Aid: 223, 804

Handrails: 504.6, 505

Stairs in Wet Conditions: 504.7

first floor

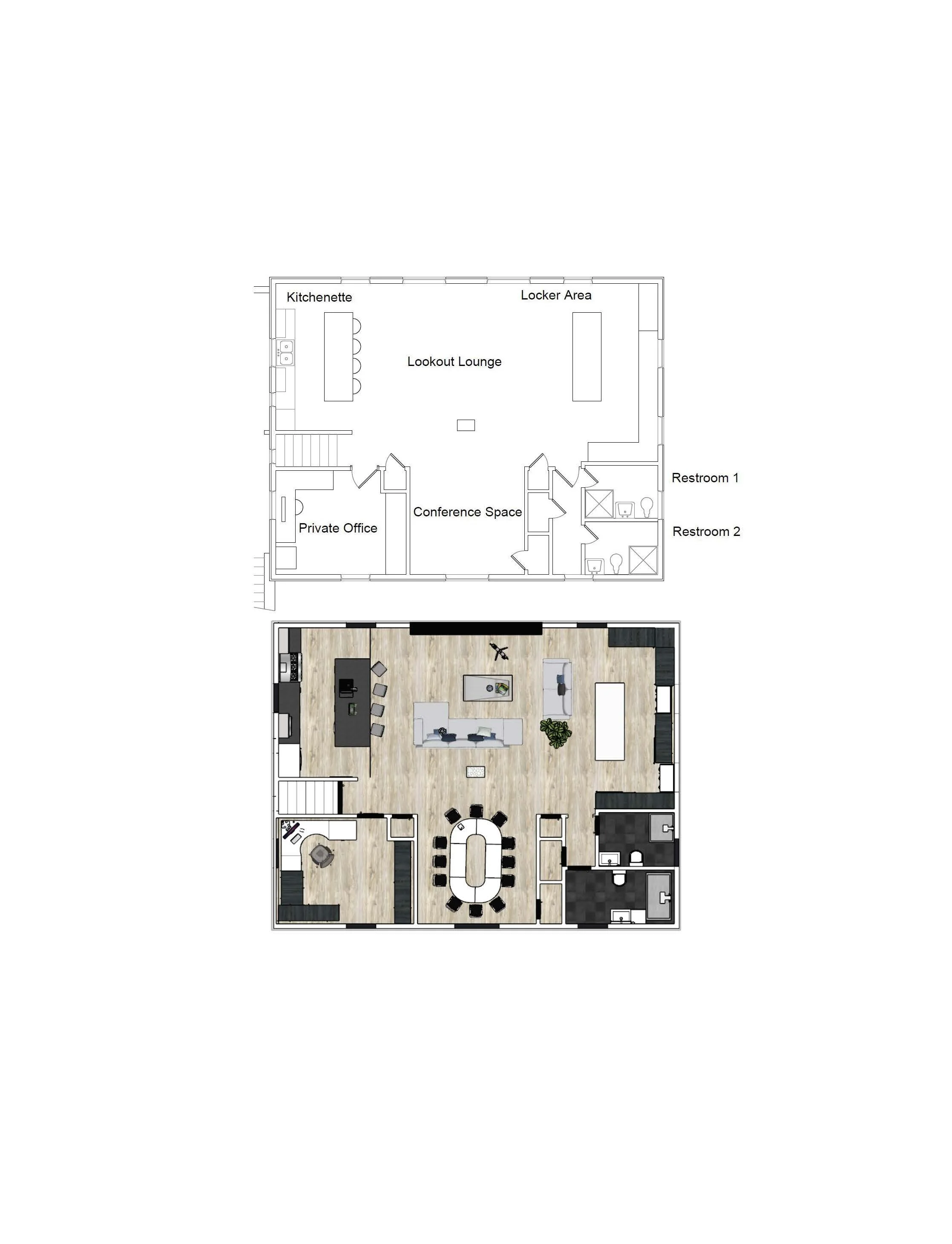

Second Story Floorplan
